Create a Project from Design

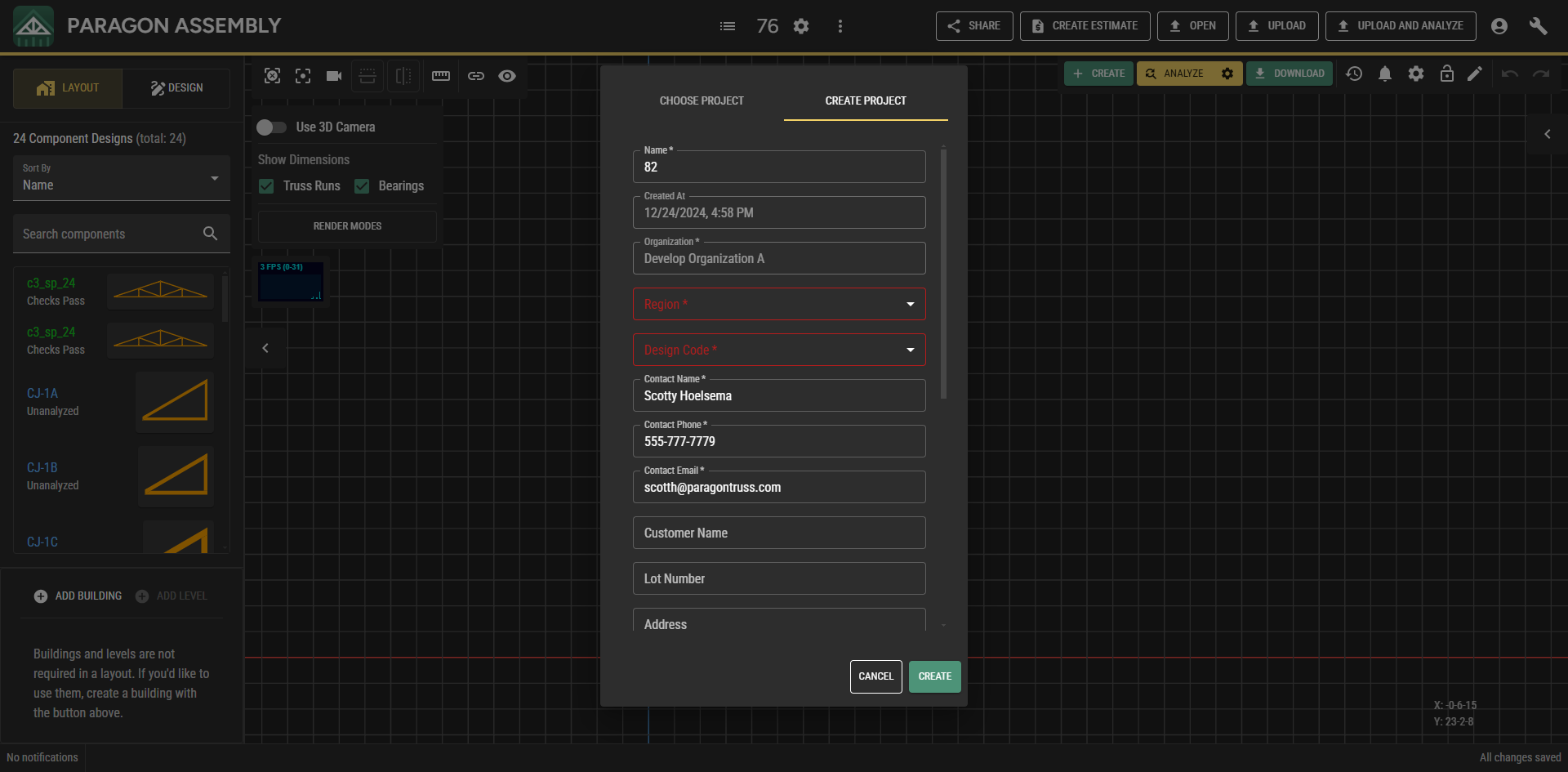

The Choose Project dialog now has an option to create a project. The button at the top toggles between choosing and creating a project. Filling in the required properties and hitting Create opens the new project in a new tab. There is a warning if a project with the same name already exists.

Create Project Dialog

Hanger Visuals on Jacks

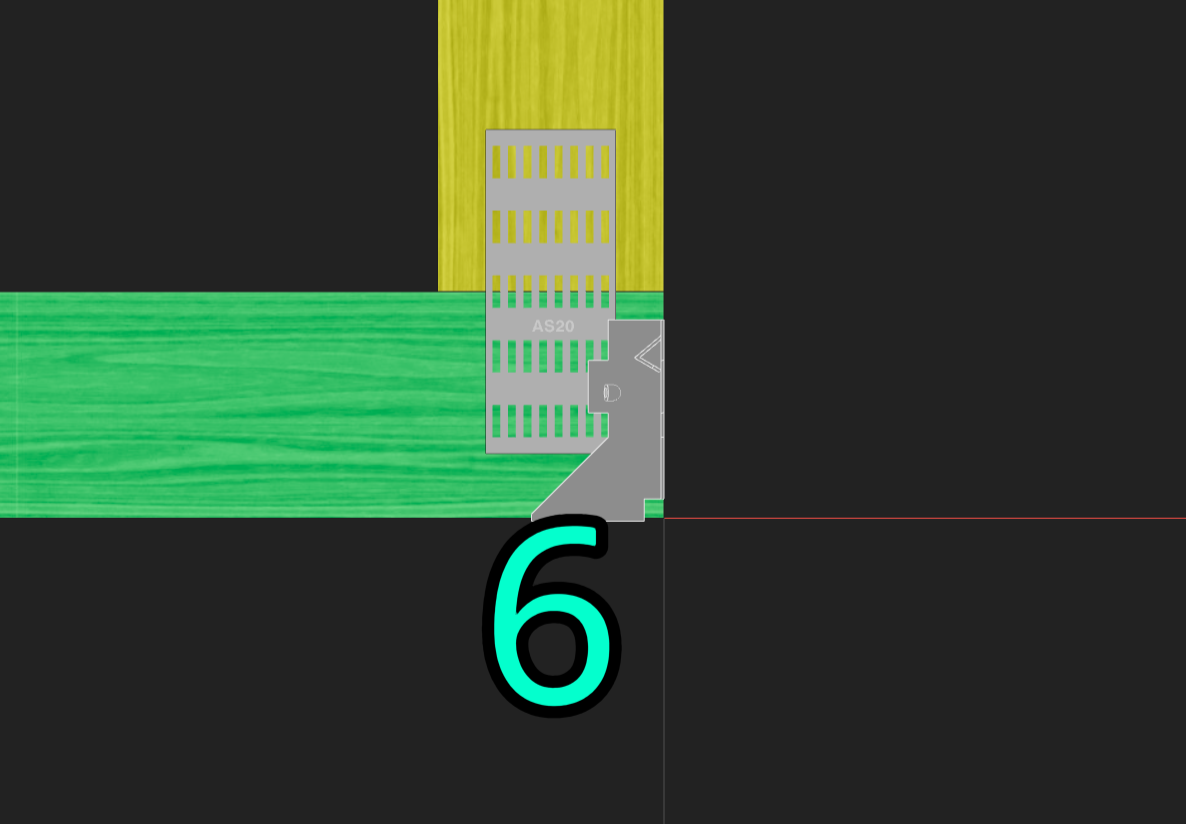

Hanger visuals have been added to jacks in single component design view. When rendered, a hanger replaces the corresponding hanger bearing visual (and adopts such behavior as hovering, selecting, and right-click).

New Hanger Visual on Jacks

Notes:

  • A single jack design can be reused in different carried relationships, which means a jack might be carried by different hangers. With this in mind, a jack will only display its carrying hanger if all carried relationships use the same hardware.
