Version 298

Changes to Hanger Visuals

Hanger models are displayed on the girder in single component design view and layout view

New render modes to determine whether to show hardware, connection overrides, both, or neither

Tooltip and right-click menu are supported in single component design view

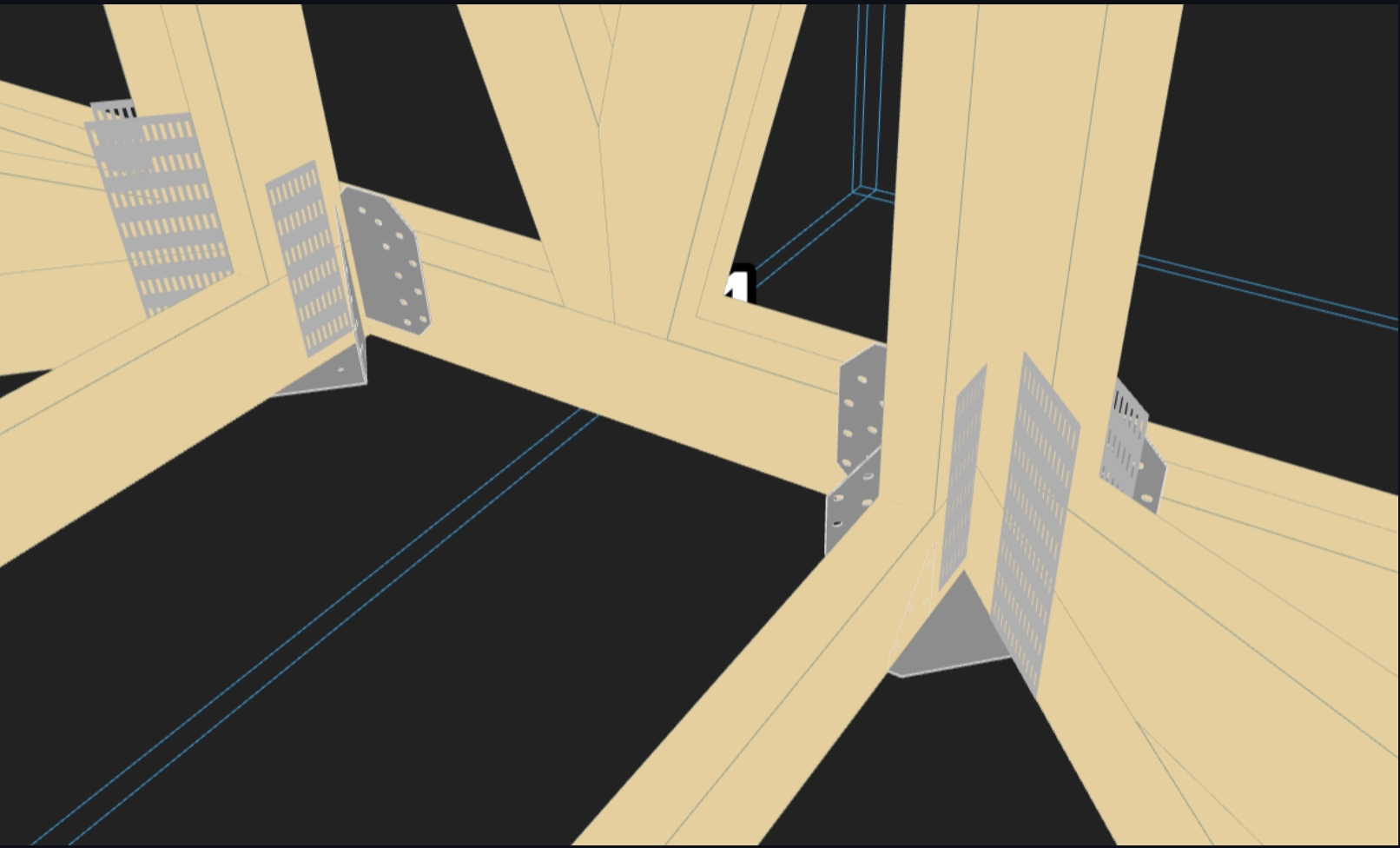

Layout View

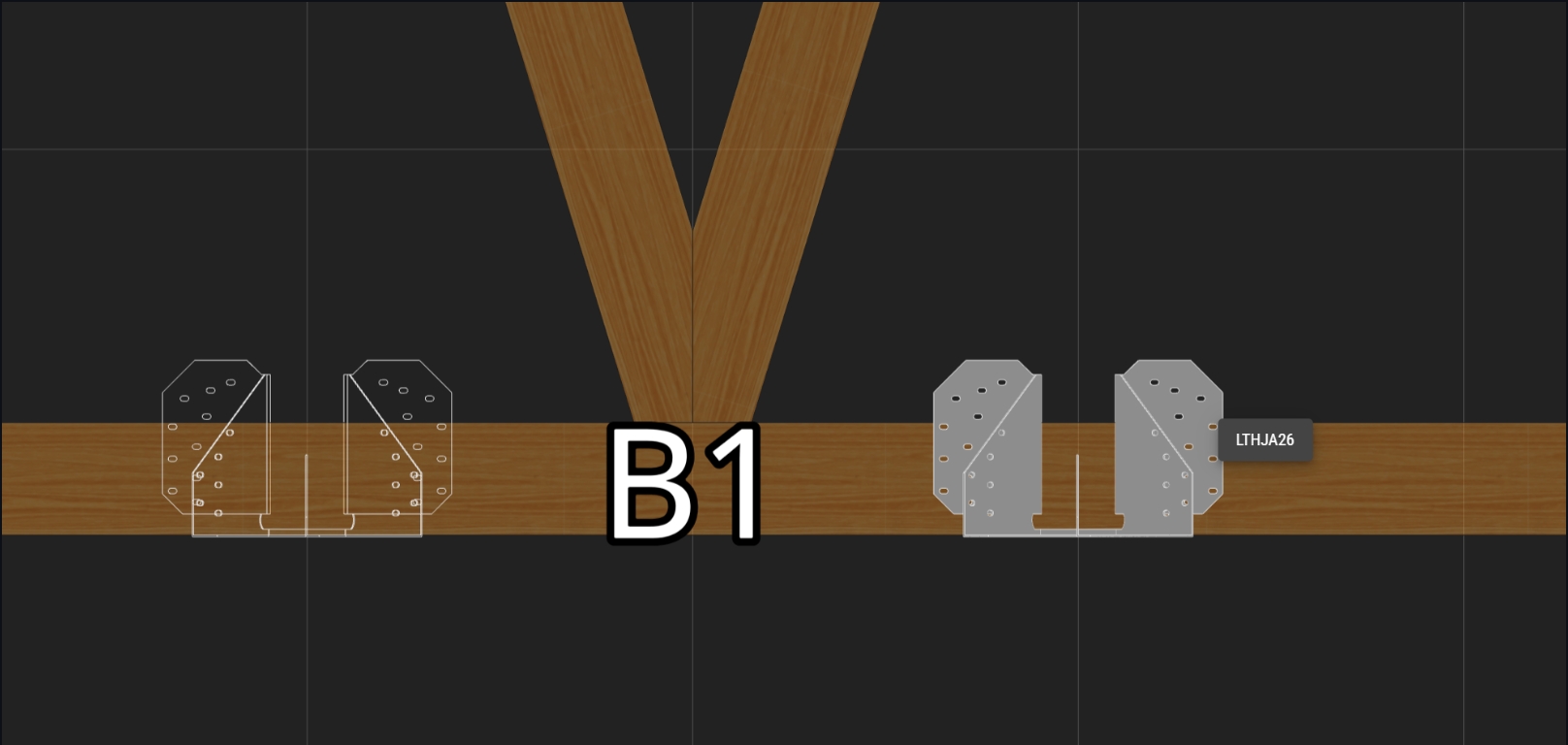

Design view (selected, with tooltip)

Support arithmetic in distance inputs

Addition and subtraction are now supported in distance input fields. Subtraction is denoted with a hyphen surrounded by spaces to distinguish it from the linking hyphen present in various accepted distance formats. Addition is denoted with a + symbol.

Arithmetic in Inputs
