Create & Modify Plate Lists

Create a Plate List

Step 1 - Click the + button to begin creating a new plate list

Step 2 - Enter a name for your custom list

Tip

This custom name will be displayed in the Paragon Design interface when editing material settings.

Step 3 - Add plates to the list by selecting or deselecting options in the grid

Duplicate a Plate List

Step 1: Choose the List you would like to copy

Step 2: Click the Duplicate Button in the header

Step 3: Edit the duplicated list

The list name will start with Copy Of and then the previous list name. For example, duplicating a Plate List with the name of Example List will result in a new list called Copy of Example List

Note

From the Edit Plate List screen, you will have the option to rename the Set.

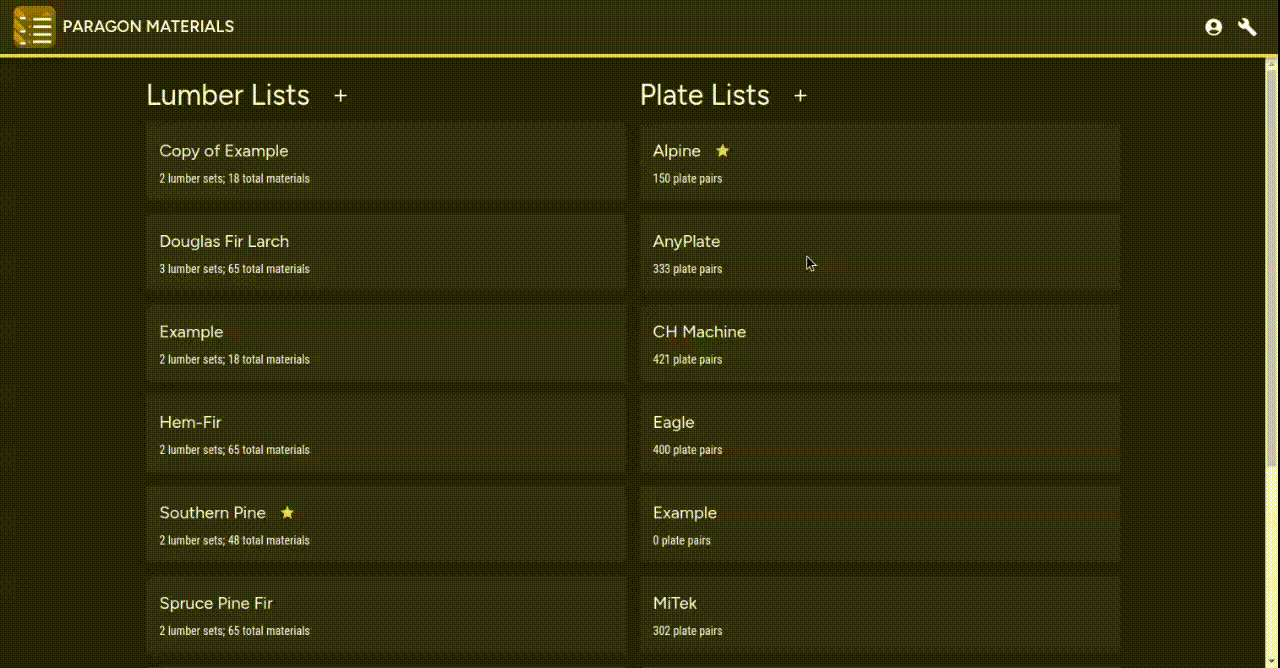

Choose a Default List

From the home screen right click on a list and choose Make Default
