Render Modes

There are several options available when viewing a layout. Below is a list of component types and their associated options. Refer to Render Mode Options and the Render Modes Explanation for more information.

Visible

Outlined object with no flll coloring.

Visible Feature Pattern Container

Hatched

Available for Bearing Envelopes, hatching is applied in 2D view only.

Hatching is applied based on the Top Elevation property according to the following:

• Bearings with the most common Top Elevation in the project (based on quantity of Bearing Envelope objects) do not receive hatching.

• A unique hatching pattern is applied to walls of varying Top Elevation properties.

• Hatching color is applied based on the Structural vs. Non-Structural property.

2D View with Hatched Bearing Envelopes

Hatched Bearing Envelope Examples Structuual (left) vs. Non-Structural (right)

Wireframe

Outlined object with no fill coloring.

Wireframe Bearing Envelope

Solid

An object filled with color.

Solid Bearing Envelope

Hidden

This hides the object from view.

Planes

This fills the planes with translucent color and shows slope direction but leaves the rest wireframed.

Planes Selected for Roofs

Designs

If a Truss Envelope has a corresponding component design, this will render those designs.

Truss Envelopes with Linked Component Designs

Envelopes

This will show a 2D representation of truss envelopes without the 3D solid.

Envelopes Rendered for Truss Envelopes

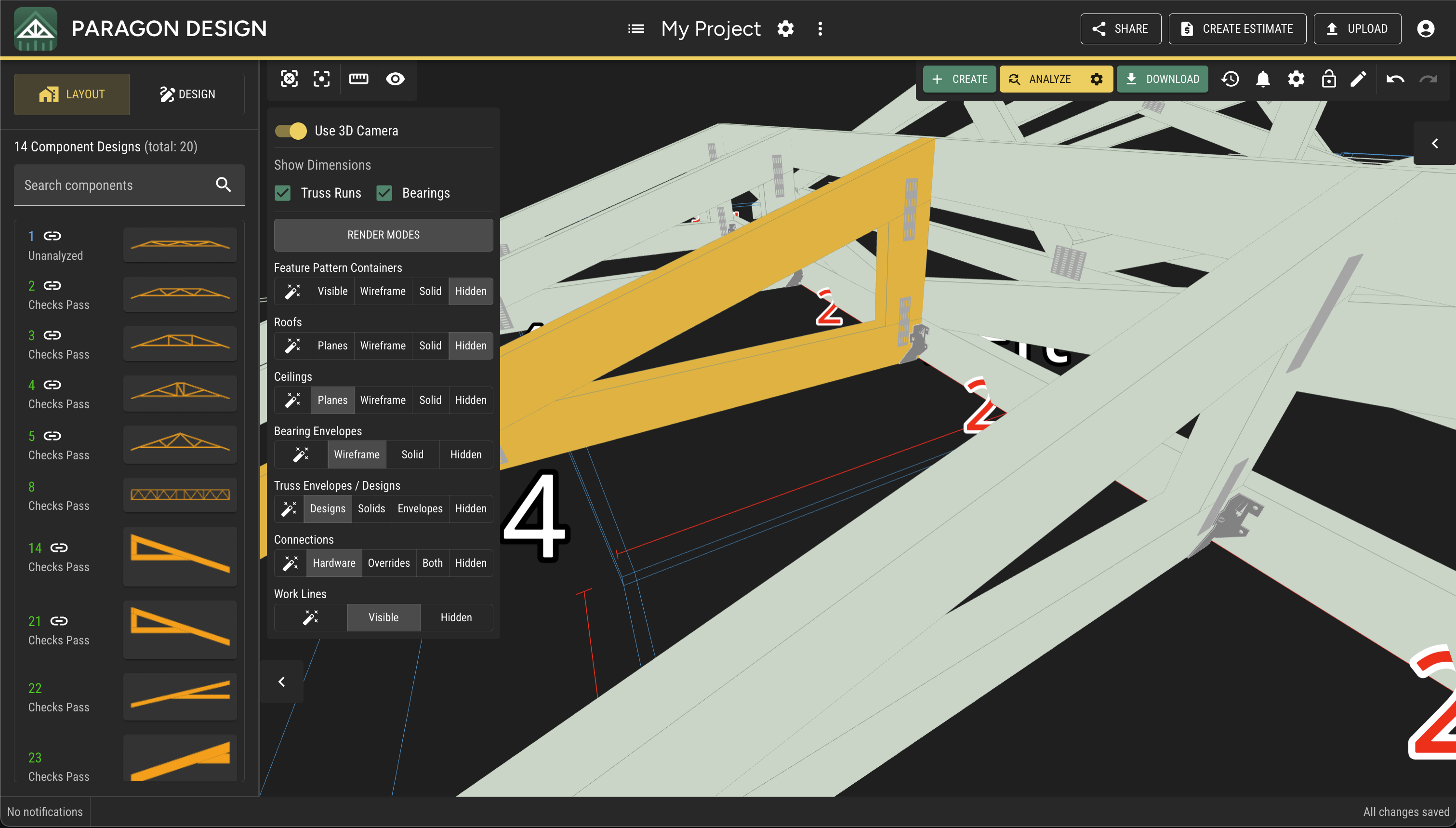

Hardware

This mode shows the hanger hardware on girders with carried components.

Hardware Visible

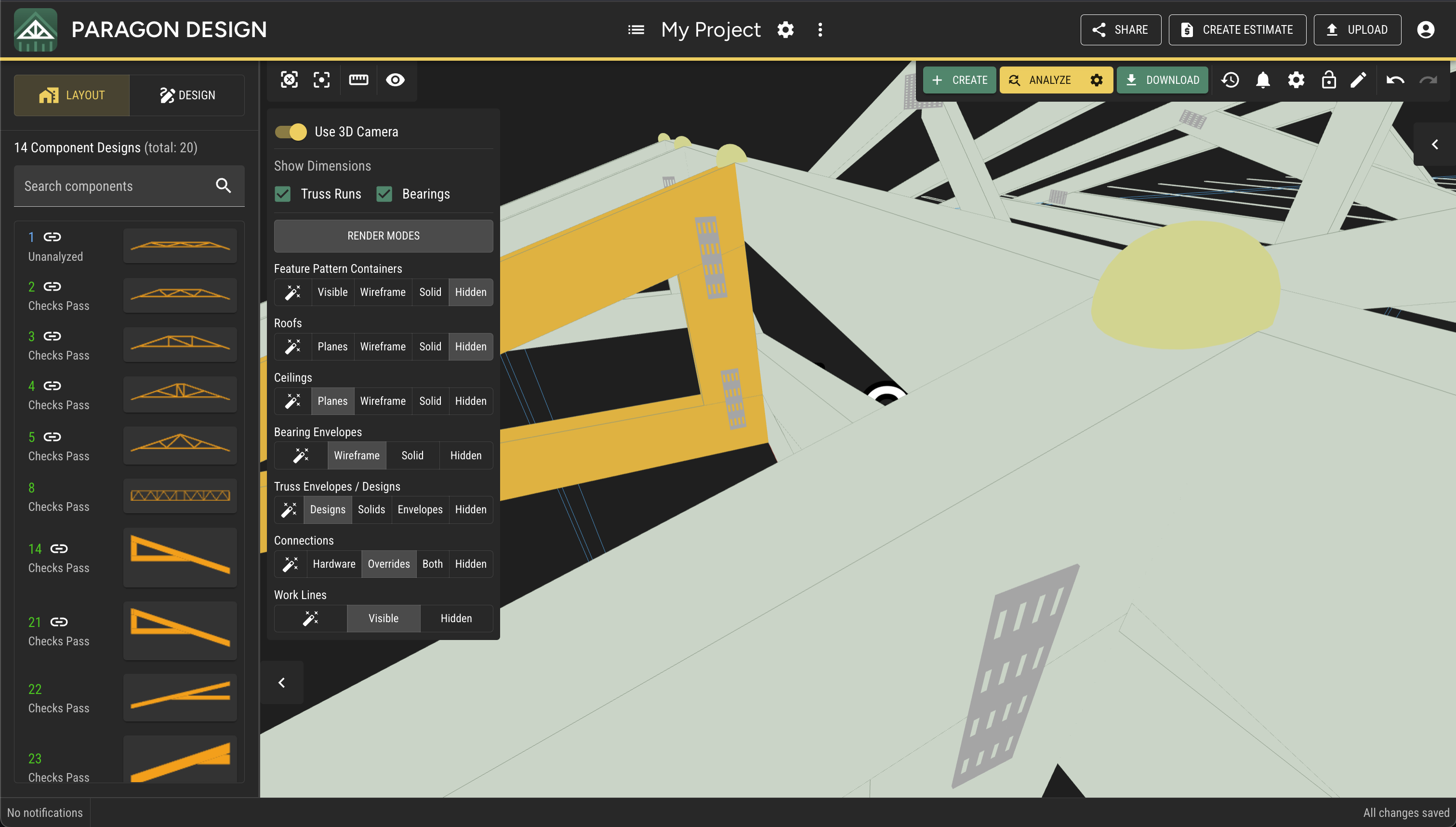

Overrides

This shows a colored sphere or X over a connection that has been manually changed.

Hardware Overrides

Both

This option shows both the hardware and override visuals.
