Adjust Heels

Before you begin, select a profile truss, such as a Scissors truss.

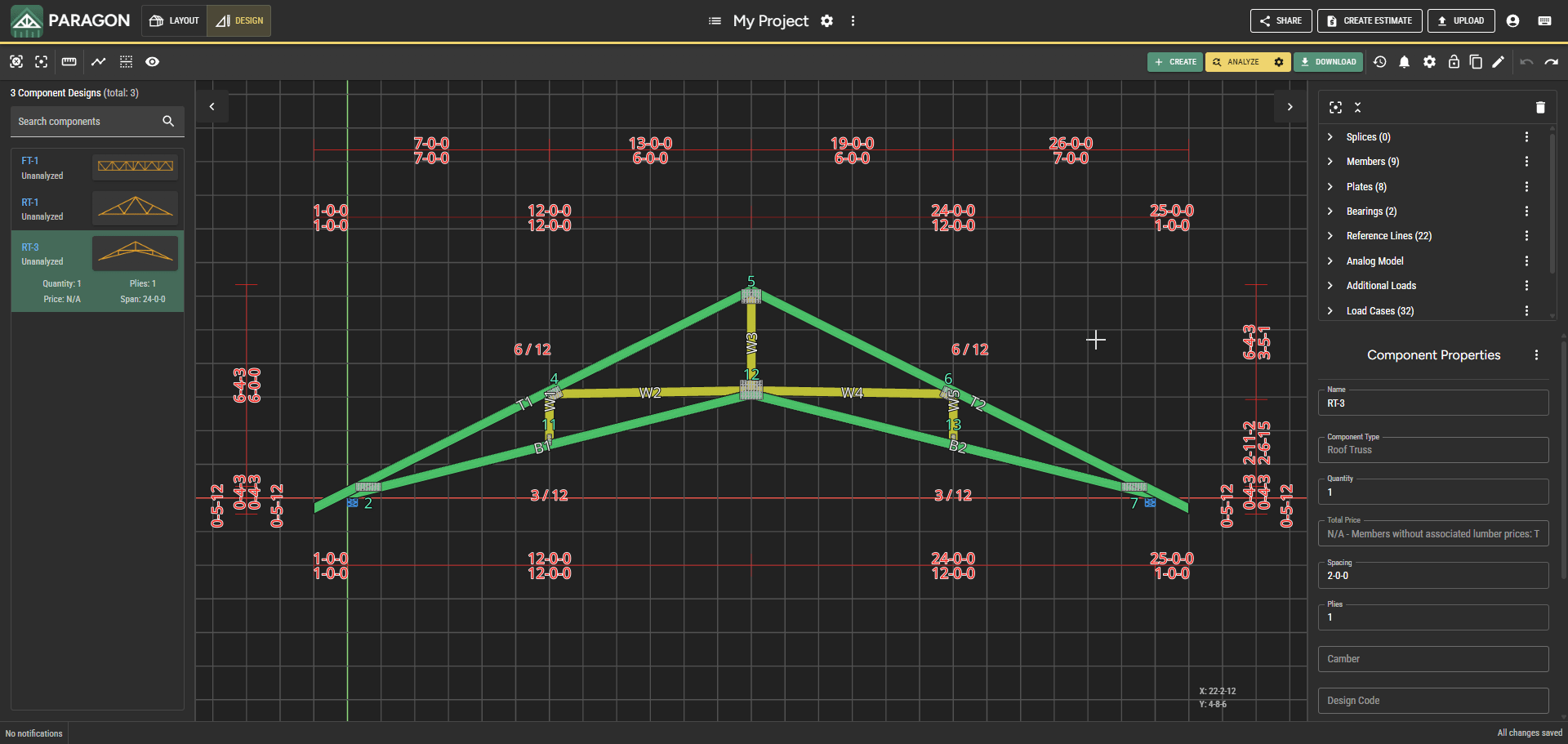

Step 1 - Click Edit Truss and choose Adjust Heels

Step 2 - Use the Left Heel Height and Right Heel Height inputs to adjust the height of the heels

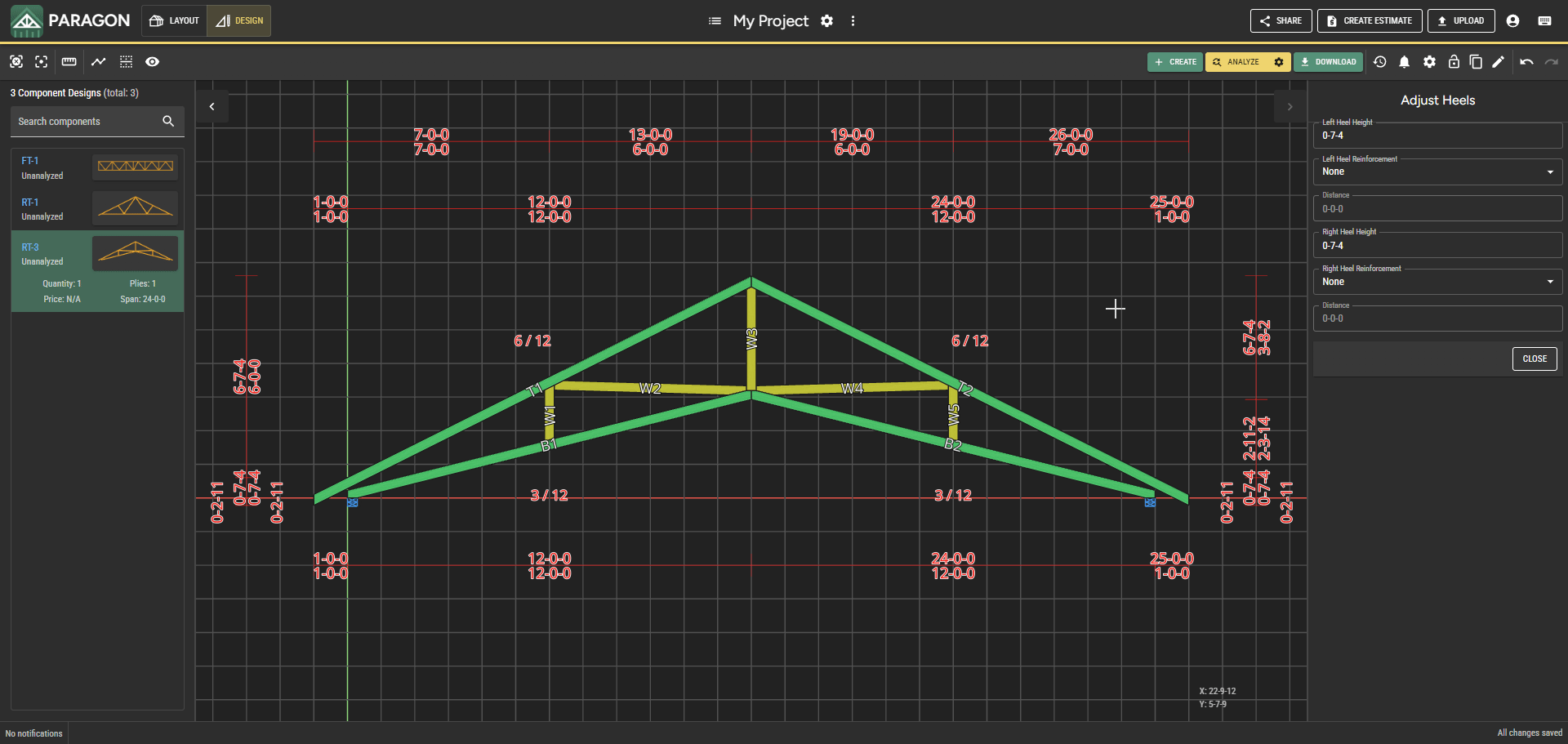

Step 3 - Use the Left Heel Reinforcement and Right Heel Reinforcement options to add reinforcing members at the heels
