Run & View Component Analysis

Analyze a Truss and View the Results

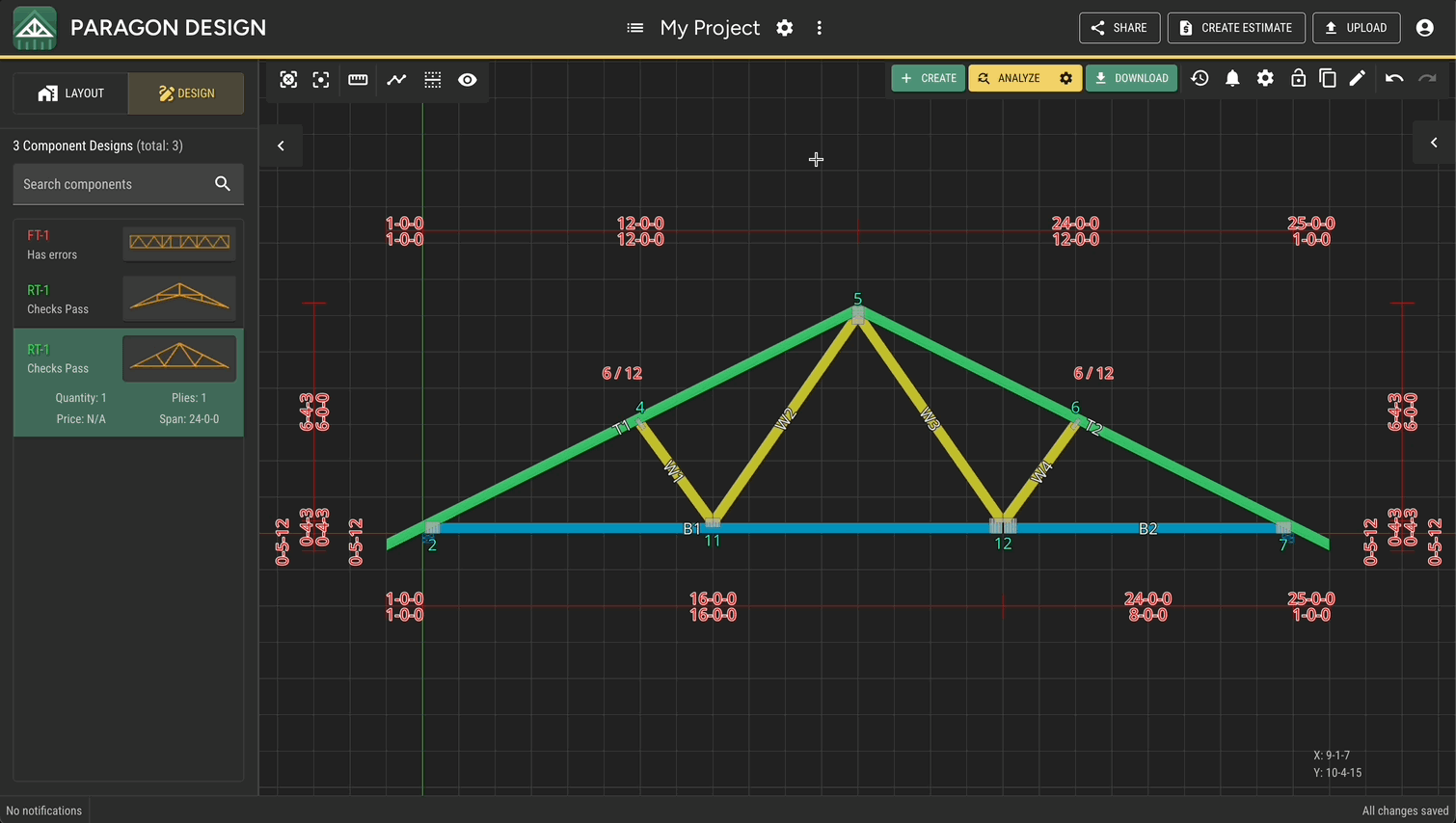

Step 1 - Insert or Select a Component and Click the Analyze Button

Step 2 - Click the Analysis and History Button to Open the Analysis and History Subpanel

Step 3 - Select a Load Case to Visualize it on the Truss or Scroll Down to See Calculations for Members, Plates, and Joints

Tip

Load Case visuals can also be toggled from the Component Subpanel in the Right Sidebar.

Restore Component Analysis

Step 1 - Access the Analysis and History Subpanel

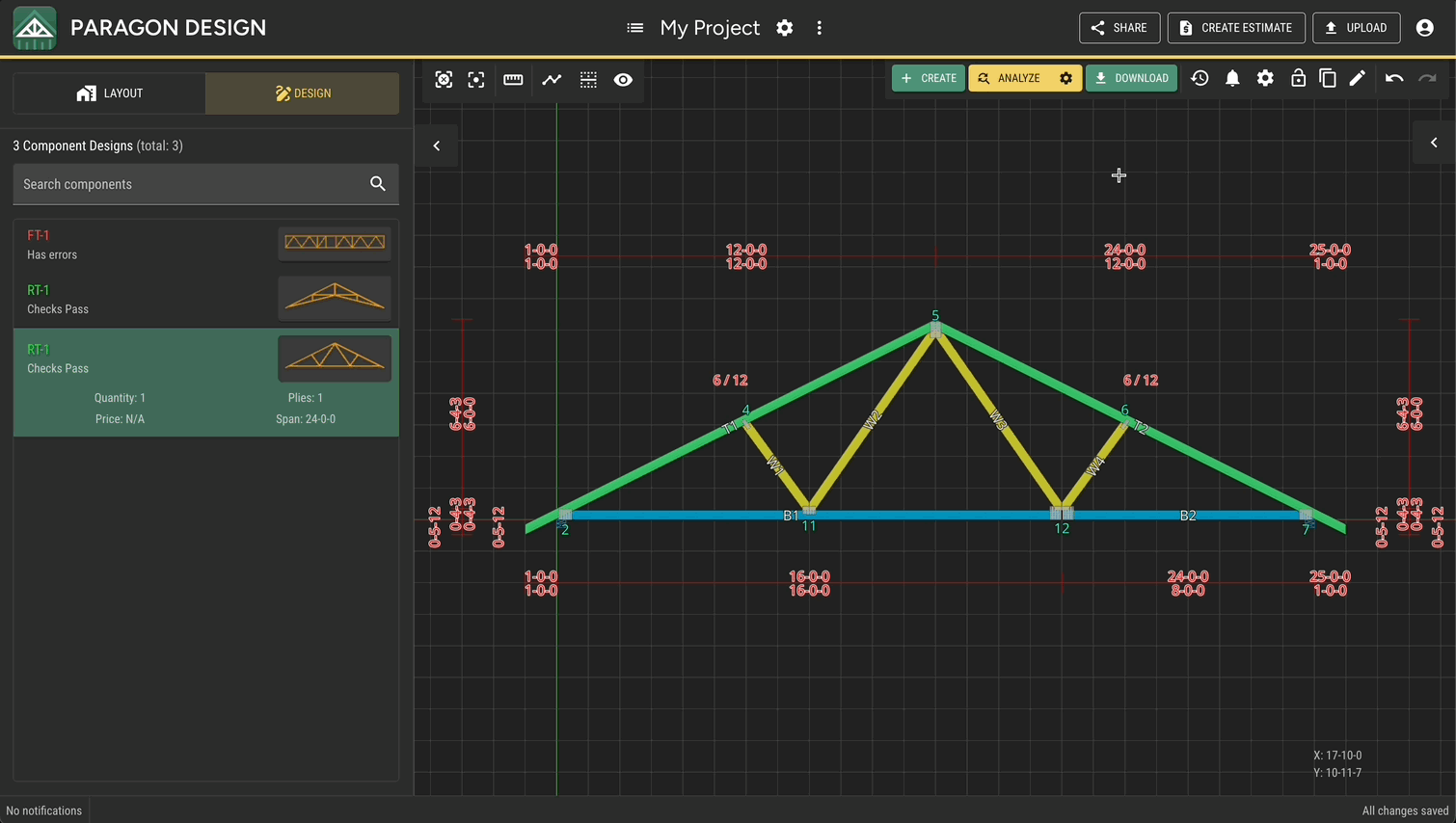

Step 2 - Click the Restore Component Button for the Desired Component to make the version of the truss from that analysis current

Step 3 - Analyze the Component to view the results

Tip

You can rename items in the Analysis History Subpanel.

Run a Detailed Analysis to Access Force Visuals

Step 1 - Click the Analysis Options button and Select Detailed

Step 2 - Click the Analyze Button

Step 3 - Click the Analysis and History Button to Open the Analysis and History Subpanel

Step 4 - Select a Load Case and Click the Display Forces Button

Expand the list of load cases in the Analysis and History subpanel and click on one to select it. Open the Display Forces menu to toggle the forces you wish to see displayed on the truss.
