Load Settings

Components

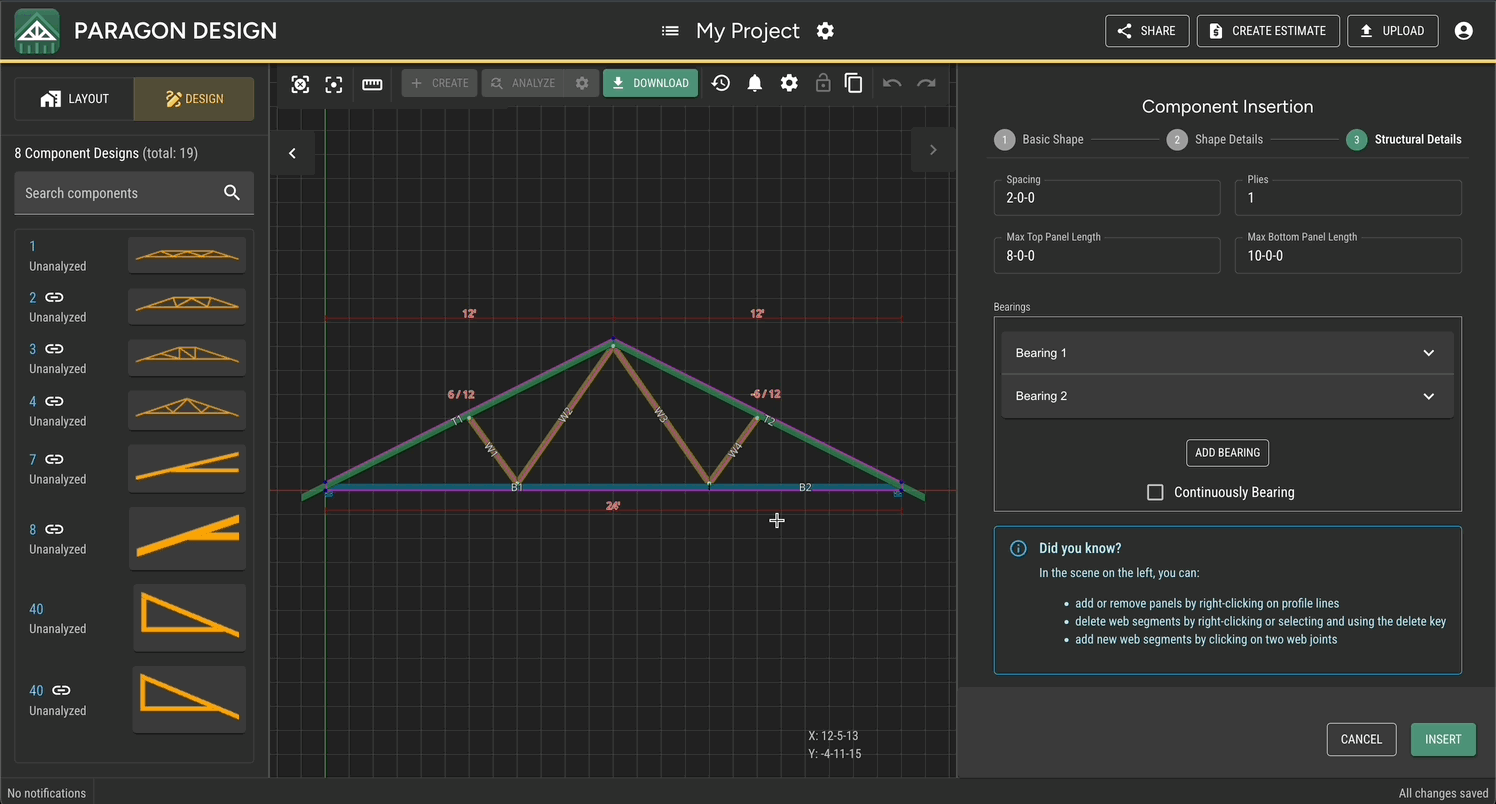

Modify Load Settings During Component Insertion

The last step in the component insertion process allows you to modify Load Settings for that component. Click the Load Settings button to see the list of settings. You can then toggle the various settings on and off.

Once you are satisfied with the modified Load Settings, simply click the Change Settings For This Component button to save your changes.

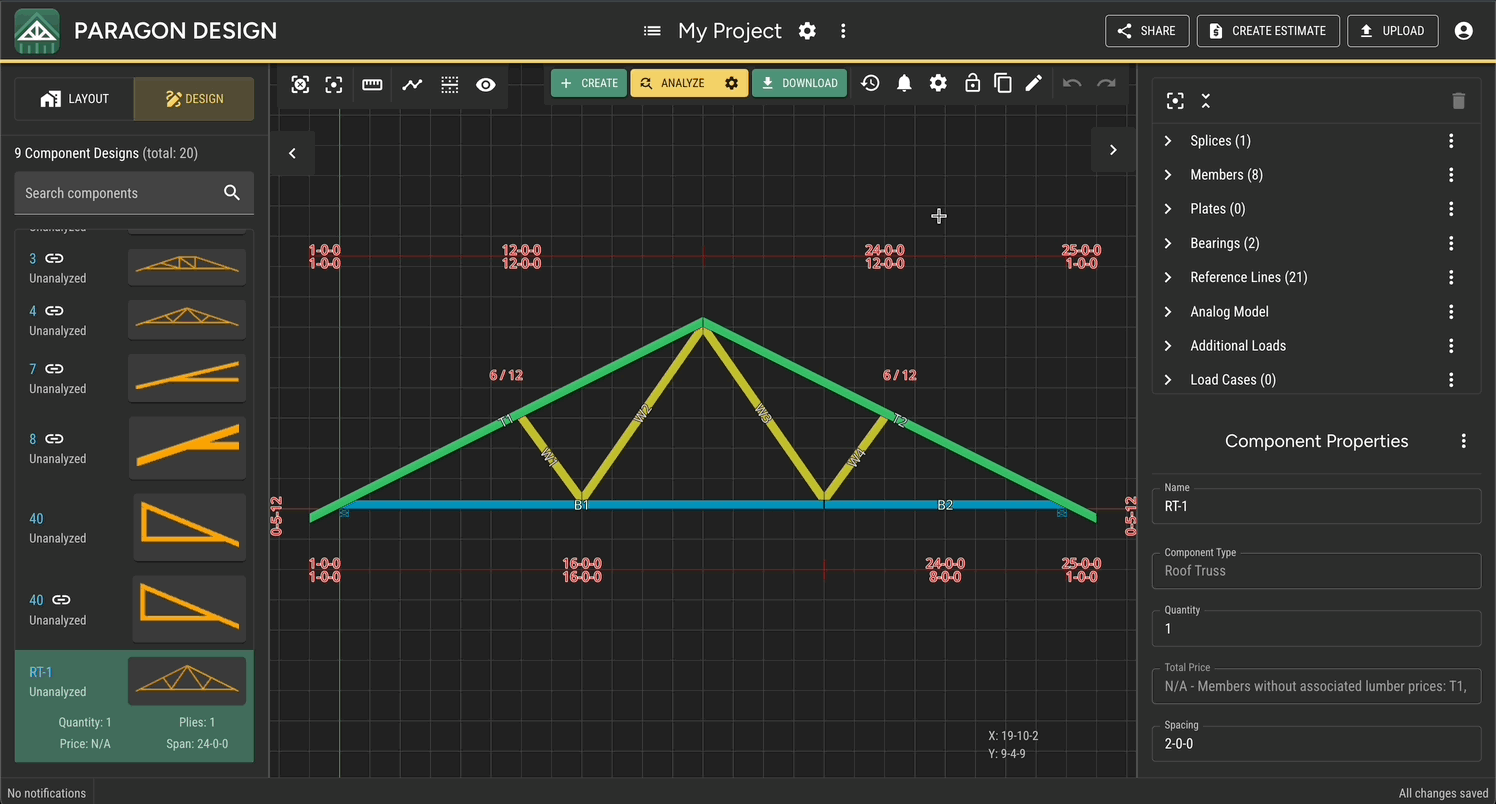

Modify Load Settings After Insertion

Select the truss then click the Truss Settings button on the top toolbar and choose Load Settings.

Projects

Modify Load Settings for all components in a project

If you are in a project you can modify default Load Settings for the project by opening the Project Settings menu (also available in the Project Menu) and then Load Settings. You can also directly change the settings of multiple components that have already been created and see what differences there are between the components' settings.
