Analysis Settings

Components

Modify Analysis Settings during component insertion

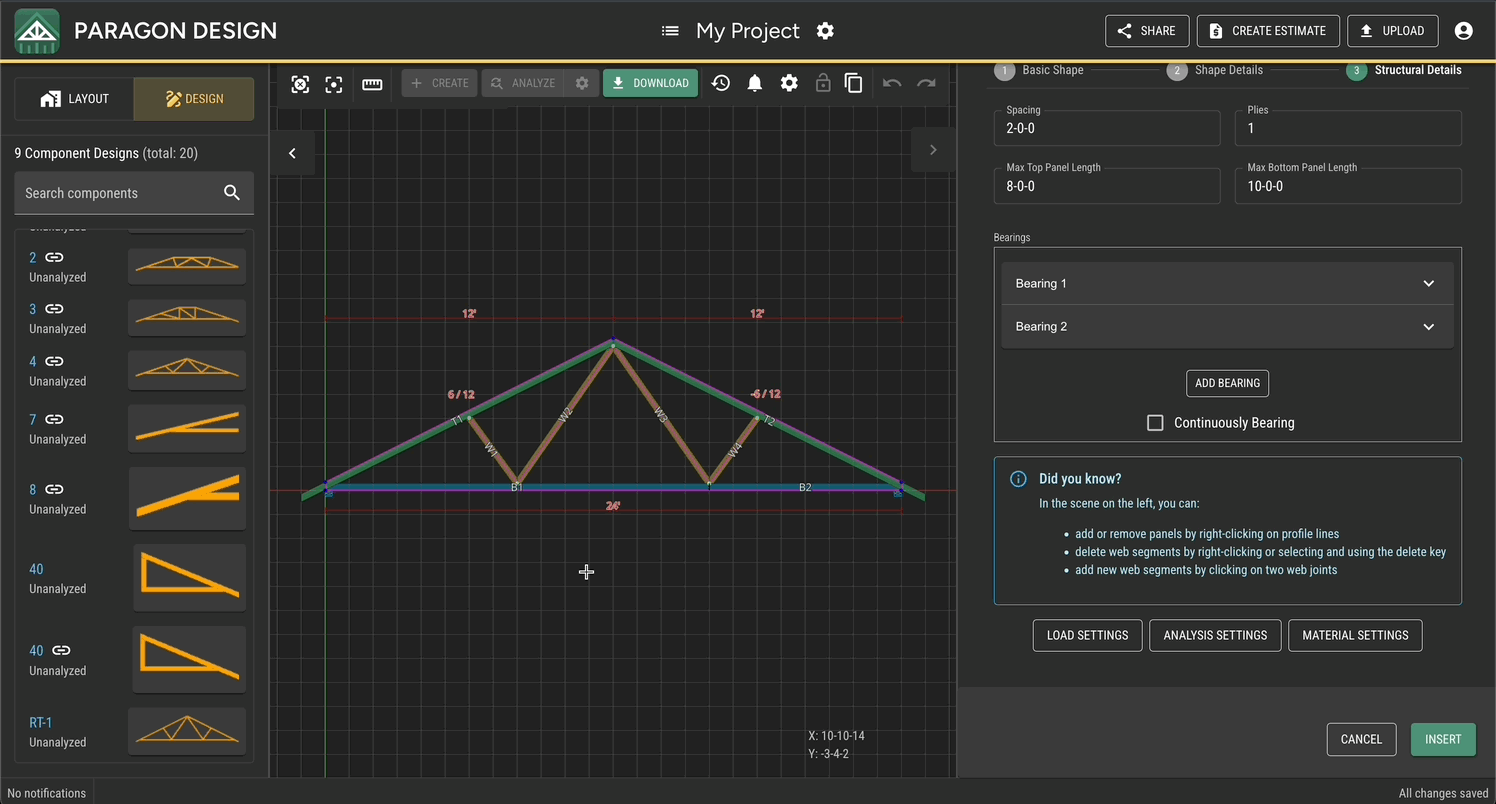

Click the Analysis Settings button to see the list of settings. You can then toggle the various settings on and off.

Once you are satisfied with the modified Analysis Settings, simply click the Change Settings For This Component button to save your changes.

Modify Analysis Settings after insertion

Select the truss then click the Truss Settings button in the top toolbar and select Analysis Settings

Projects

Modify Analysis Settings for all components in a project

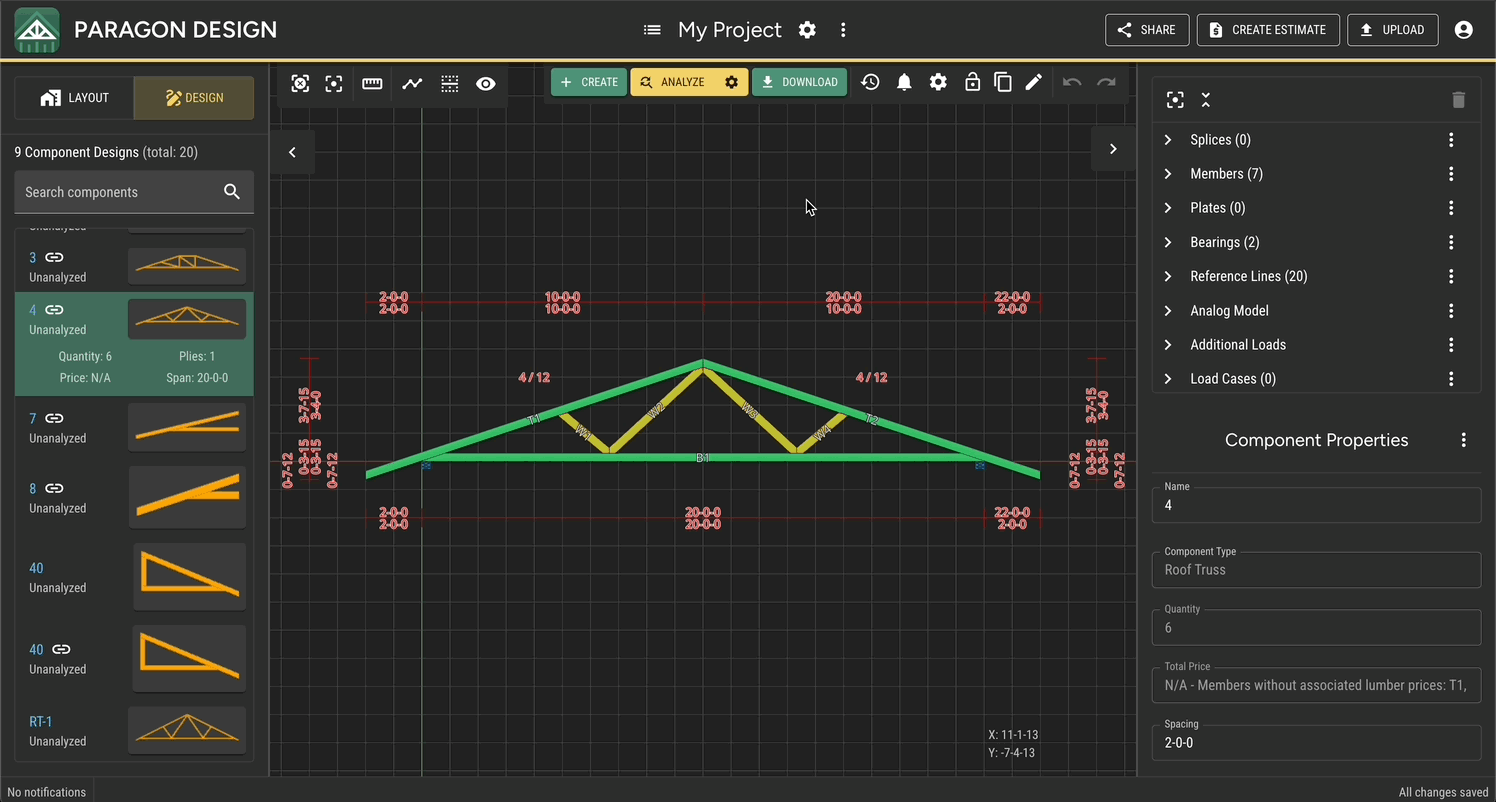

If you are in a project you can modify Analysis Settings for the entire project by opening the project menu and selecting Analysis Settings.

If the project contains multiple levels as part of a layout, you can change the default settings for the selected level only, for all levels, or change the default and component settings project-wide.
