Reweb Feature Pattern Truss

Before you begin, select a Feature Pattern truss.

There are different options available when rewebbing a Feature Pattern Truss, but the process is similar to rewebbing Profile Trusses.

Note

Changes are not applied until you click GENERATE NEW WEBS .

Step 1 - Click Edit Truss and choose Reweb Truss

Step 2 - Choose the Zone you want to reweb, such as Zone 1

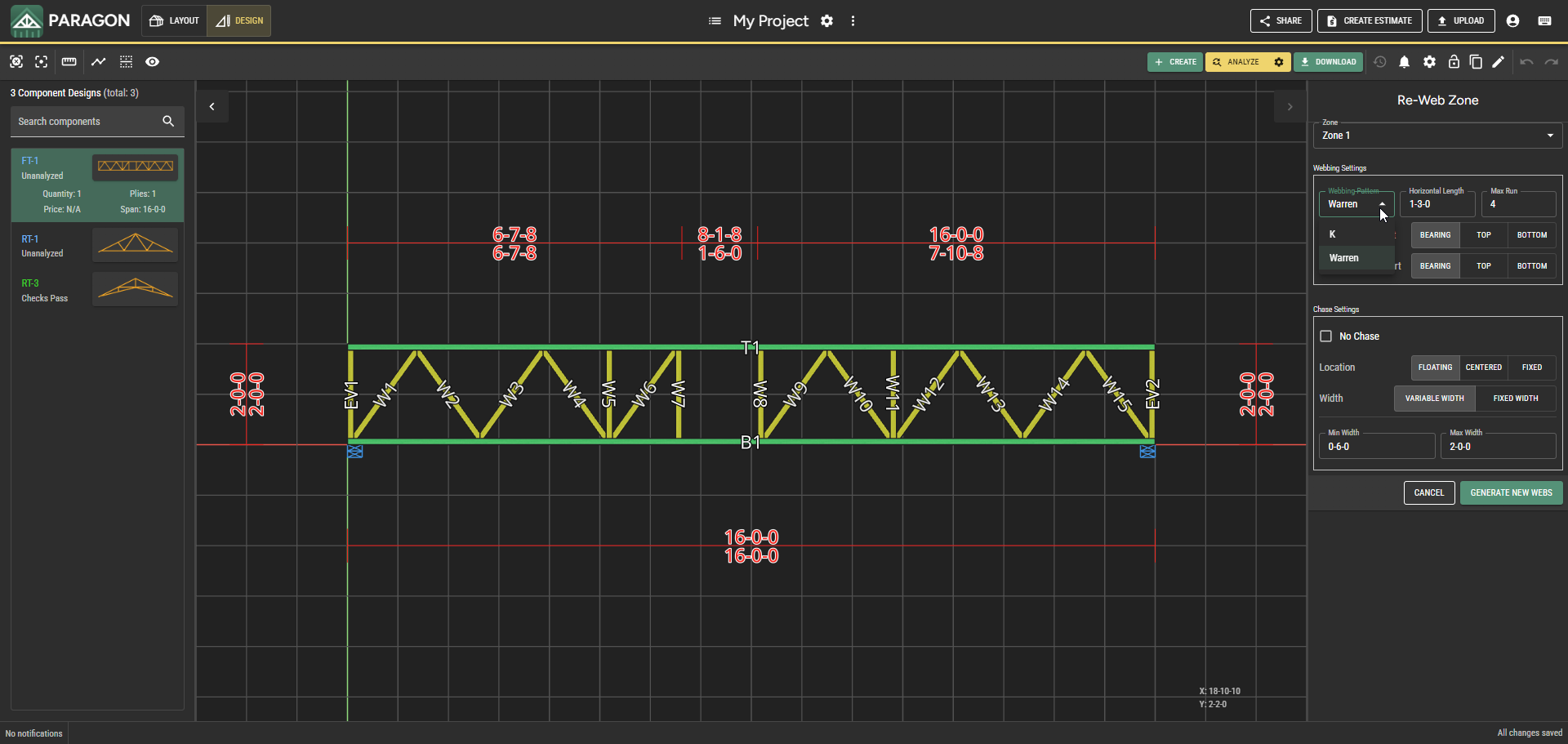

Step 3 - Choose between Warren and K for your Webbing Pattern

Step 4 - Enter a horizontal length, such as 2' in Horizontal Length, and optionally a max run if you are using the Warren pattern

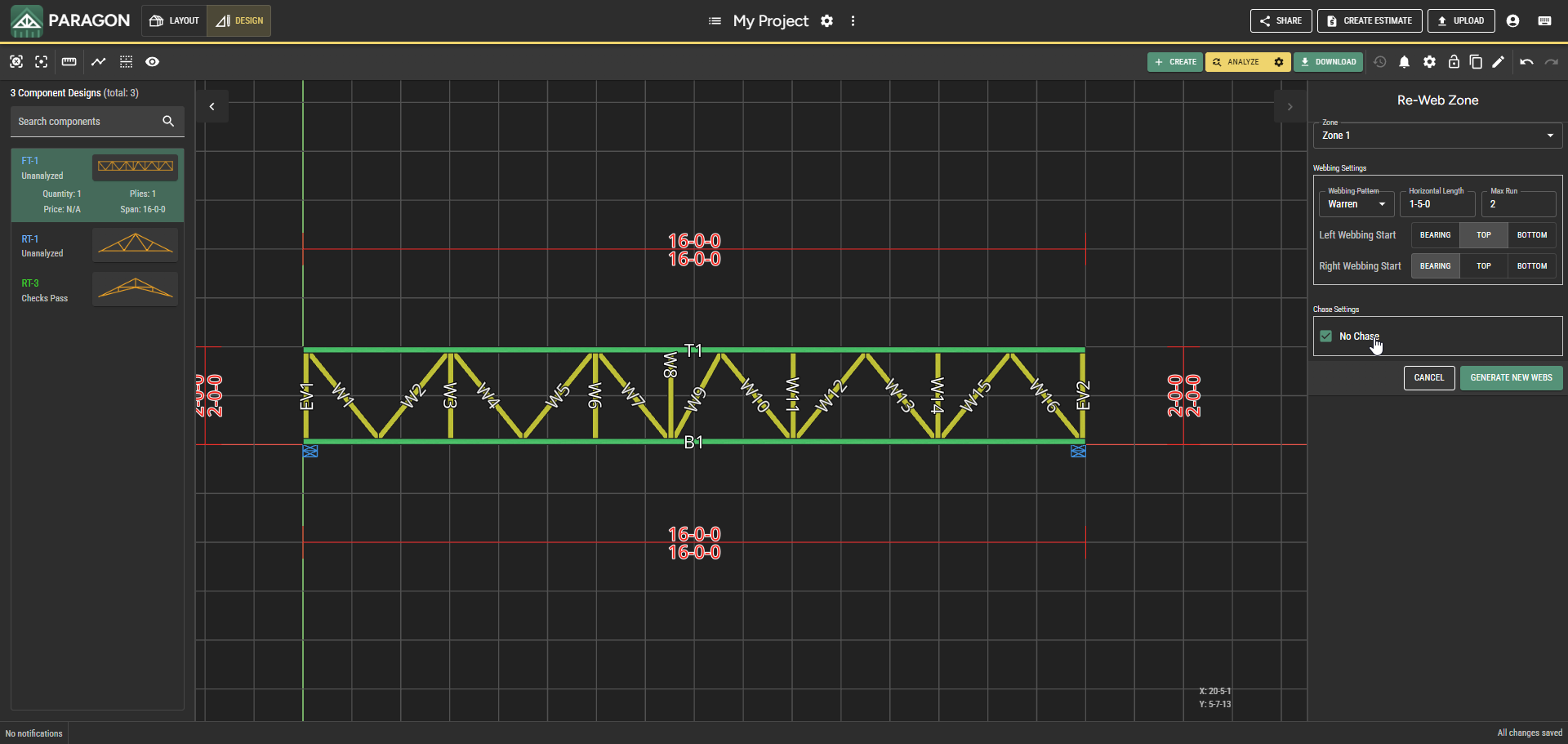

Step 5 - Modify the chase settings as desired, or check No Chase if one is not needed for this truss

Step 6 - Click GENERATE NEW WEBS to see your changes

Note

You will not see the new webbing pattern until you GENERATE NEW WEBS, however you can undo your changes by using the keyboard shortcut Ctrl+Z .
