Make Gable - Feature Pattern Trusses

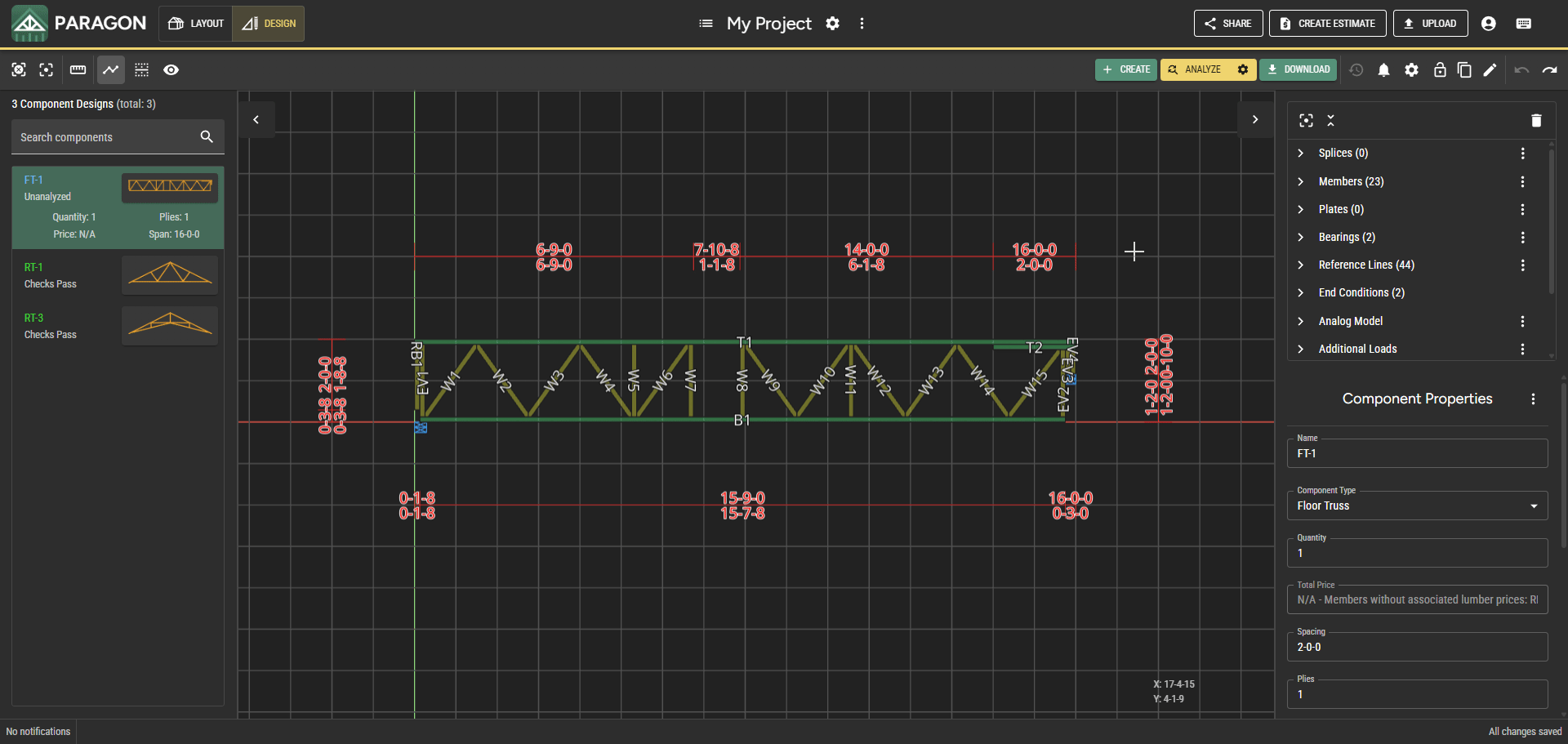

Gabling a Feature Pattern Truss

Step 1 - Click Edit Trussand choose Make Gable

Step 2 - Adjust Stud Spacingand Studding Direction

Step 3 - Apply your changes with Make Gable

Making a Feature Pattern a Structural Gable

Step 1 - ClickEdit Truss and choose Make Gable

Step 2 - Click the Structural Gable check box

Note

Any manual webbing changes you have previously made will be preserved when turning on Structural Gable

Step 3 - Adjust Stud Spacing and Studding Direction

Step 4 - Apply your changes with Make Gable
